Tuesday, November 18, 2014

Top 10 Making Chips Blog Posts

We have been publishing this Making Chips blog now for more than 2+ years. That's a lot of Tips and Tricks and a lot of good information here that tends to be a little hard to find. Using the SEARCH option is a great  tool if you are looking for something in particular ... but what if you're just interested in reading some articles in general. That can be a little time intensive.

So I thought it was a good time to make a list of the TOP 10 most read articles in the blog. These are the TOP 10 articles based on the number of times the article was read ... from the Google statistics for the blog. I have listed them below in order from the most popular to the 10th most popular... with a short description of each. If you're interested ... just click the name and that blog post will open up for your review. There are a lot of good articles and a lot of good information to digest ... enjoy.

TOP 10 Making Chips Blog Posts

#1 - Cutter Compensation - A Programmers Best Friend
Article dealing with the how's and why's of CUTTER COMPENSATION in turning.

#2 - The How's and Why's of Sub-Programming
Everything you need to know about sub-programming ... with G code examples

#3 - Fanuc MACRO Programming Series
A (10) part series that teaches all you need to know about programming Fanuc Custom MACRO B that includes in-depth explanations and sample videos.

#4 - Roughing Canned Cycles in Turning
Everything you need to know about one of the most powerful tools in your CNC programming arsenal ... using canned cycles when rough turning.

#5 - A Homemade Bar Puller for Your CNC Lathe
One of our most popular articles that deals with the creation of a homemade bar puller that can be used on your CNC lathe ... with programming examples.

#6 - Canned Cycle Drilling and R Plane Tricks
The how's and why's of using canned cycles in drilling ... with some tips and tricks you may not have known including G code programming examples.

#7 - Anatomy of a Cutting Tool
Everything you need to know including nomenclature and what each name means to your chips.

#8 - Machine Warm Up Routine - Why? When? How?
Interesting facts about machine warm up routines ... there not just for spindles you know?

#9 - CNC Turret Alignment - Checks and Tricks
Interesting article tells how to check your CNC lathe's turret alignment ... and some tips and tricks to correct any mis-alignment.

#10 - Drill Point Calculations Made Simple
Stop drilling through thru the table ;)

Hope you enjoy these articles. If you are looking for something in particular ... give the SEARCH box a try in the upper right corner of the blog.

Until next time ... Happy Chip Making !!

Kenney Skonieczny
Kentech Inc.

At Kentech Inc. we are MACHINISTS who create Real World Machine Shop Software.
Who creates the machine shop software guiding your shop's future ??
Check out all our REAL WORLD CNC & MACHINE SHOP titles at

Tuesday, November 4, 2014

Chip Removal at Your CNC Machine - AIR vs. WATER

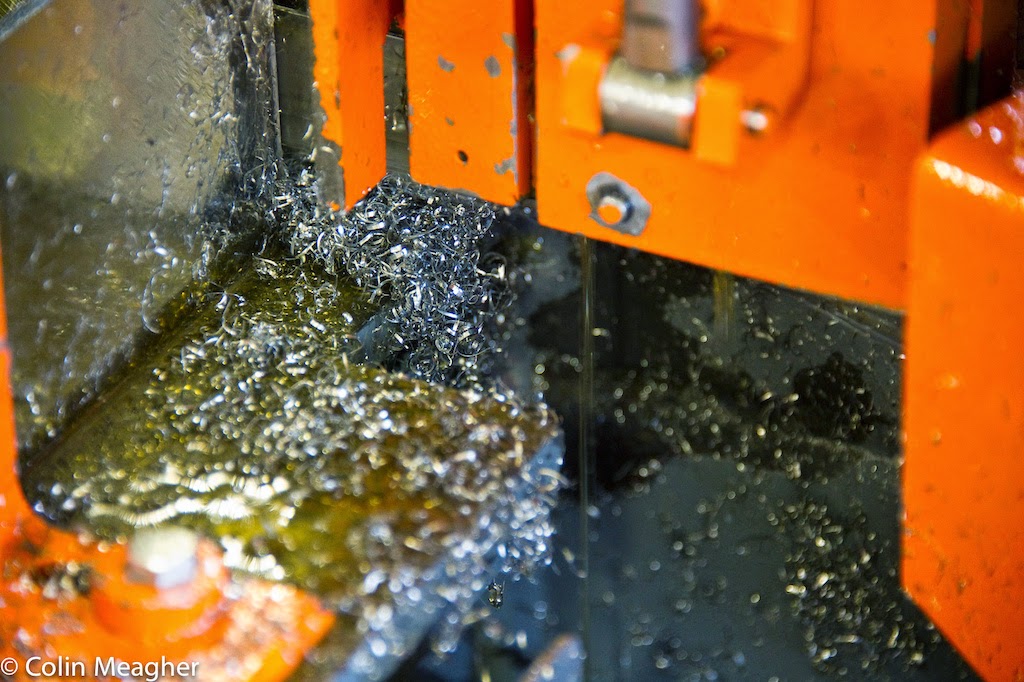

A standard component of almost every CNC machine in almost every shop is the AIR GUN. They exist in a variety of forms and power ranges ... but are the tool of choice for cleaning chips off workpieces and areas of the machine itself. Fast and easy to access ... easy to configure and expand.

But are there any serious drawbacks to the use of the air gun at the machine?

As a former CNC field service technician ... I can emphatically state YES !! I would say that the air hose and air gun are one of the leading causes of major CNC component failures such as backlash and ball screw replacement as well as other axis positioning inaccuracies caused by machine way failures due to scoring. The innocent act of blowing off those chips can actually be one of the more destructive acts a machine operator can do to the machine. Why?? Here's a brief run down of some of the more common problems ... as experienced first hand from my experiences "in the trenches".

Backlash and Ball Screw Replacement
Of all the damage I have witnessed due directly to air gun use ... the need for the replacement of the axis ball screw assembly is by far the most common. Now for the most part I'm not talking about
simply blowing off the chips at the end of the machining operation ... I am primarily talking deep-cleaning the machine. Cleaning the machine and machine table table during a change over ... cleaning the chuck getting ready to install the collet assembly ... the "before the weekend" type cleaning of the machine where the operator may be charged with cleaning the machine from the weeks activities and is using the air gun extensively to gather the chips and "deep-clean" the machine. This type of extensive chip blowing will inevitably lead to the chips being blown into areas not designed to handle them. Perhaps the chips build up in a corner ... out of sight ... or under a way cover or find their way into a telescoping way cover. Looks clean ... but these chips are hiding and waiting. As new machining starts ... the motion of the machine forces the chips deeper and deeper into those areas until eventually they find their way onto the ballscrew where they "work their black magic". The wiper systems for both the machine ways and the ballscrew assemblies are not designed to stop chips being forced in under pressure from the force of an air gun ... but rather are designed to be effective in conjunction with the water flow of the coolant. What starts out as some axis backlash will some worsen and eventually will require the replacement of the ballscrew assembly.

Axis Way Scoring
In conjunction with the destruction mentioned above ... a different scenario occurs when the chips get lodged between the way covers and the machine ways. As the axis moves ... the chips dig and score the ways of the machine. What starts out as some simple score marks are soon magnified as more chips and more metal shavings lodge in those scores and they deepen and worsen and so on and so on and so on ... until the damage is extensive. This type of damage is a much harder to remedy ... the ways of the machine cannot simply be replaced. Now the repair consists of re-scraping or re-grinding the ways ... a major machine rebuild ... or replace the machine tool completely.

Other Common Component Failures
Over the years I have witnessed many other component failures that I would attribute directly to the use ... or over use ... of the air gun by the machine operator. These range from electrical components where chips were blown into cabinets or through seams of cabinets ... CNC lathe turret issues because chips had found their way into the indexing mechanism ... and ATC issues where chips were interfering with the tool change mechanisms. In short ... excessive use of the air gun and blowing of the chips inside the machine enclosure is very destructive ... and expensive !!

The Better Solution - COOLANT
The fact that blowing chips is a destructive act ... doesn't help with the everyday need in the machine shop and at the machine to clear away and deal with the metal chip issue. But I can definitively state that COOLANT and WATER FLOW is a much better alternative. One easy way to eliminate the overuse of air pressure is to provide an alternative like the following.

Create a coolant hose line by installing a T-joint right after the coolant pump. Attach a standard garden hose to the T and run the hose to the front of the machine. Install a standard garden spray nozzle at the end. Now when the coolant pump is on ... the operator will have pressure and in essence a garden hose with coolant flowing at his station. Instead of using the air gun in all instances ... he now has the option of using the coolant as a cleaning medium. The water flow is a much better and safer alternative to the high pressure air gun. BUT NOW IT'S UP TO ALL TO INSURE THE COOLANT MIXTURE IS MAINTAINED. With a healthy coolant mixture ... another benefit is the application of oil to the areas where the coolant is sprayed. Instead of leaving behind metals chips and shavings ... the spray will leave behind a coating of beneficial lubricating oil.
The flow and lesser pressure of the coolant hose provide a much safer and still as efficient chip removal alternative.

Blowing chips seems like such a simple act ... and one that is so common at the machine. But given a more in-depth look ... one can certainly see the possible destructive side effects this simple act can have on the machine tool. If you are in a production environment ... no doubt you have even experienced these destructive end results first hand.

I hope this glimpse into the "real world" can start you and your shop thinking in the direction of utilizing coolant and coolant spray as a chip cleaning alternative. Your machine tool will thank you !!

Until next time ... Happy Chip Making !!
